Finished End Panel - APPLIED DOOR - VERTICAL STILE -base cabinets
Finished End Panel - APPLIED DOOR - VERTICAL STILE -base cabinets

Alternative Views:
Retail Price $719.91
Sale Price + Options: $399.95



Product Code: BFEAPPLIEDDOORVERTSTILE

Size

WIDTH*:

HEIGHT*:

DEPTH*:
Doors and Drawer Fronts

Door and Drawer Front Wood Type*:

Door/Drawer Front Prefinishing*:

Qty:
Description

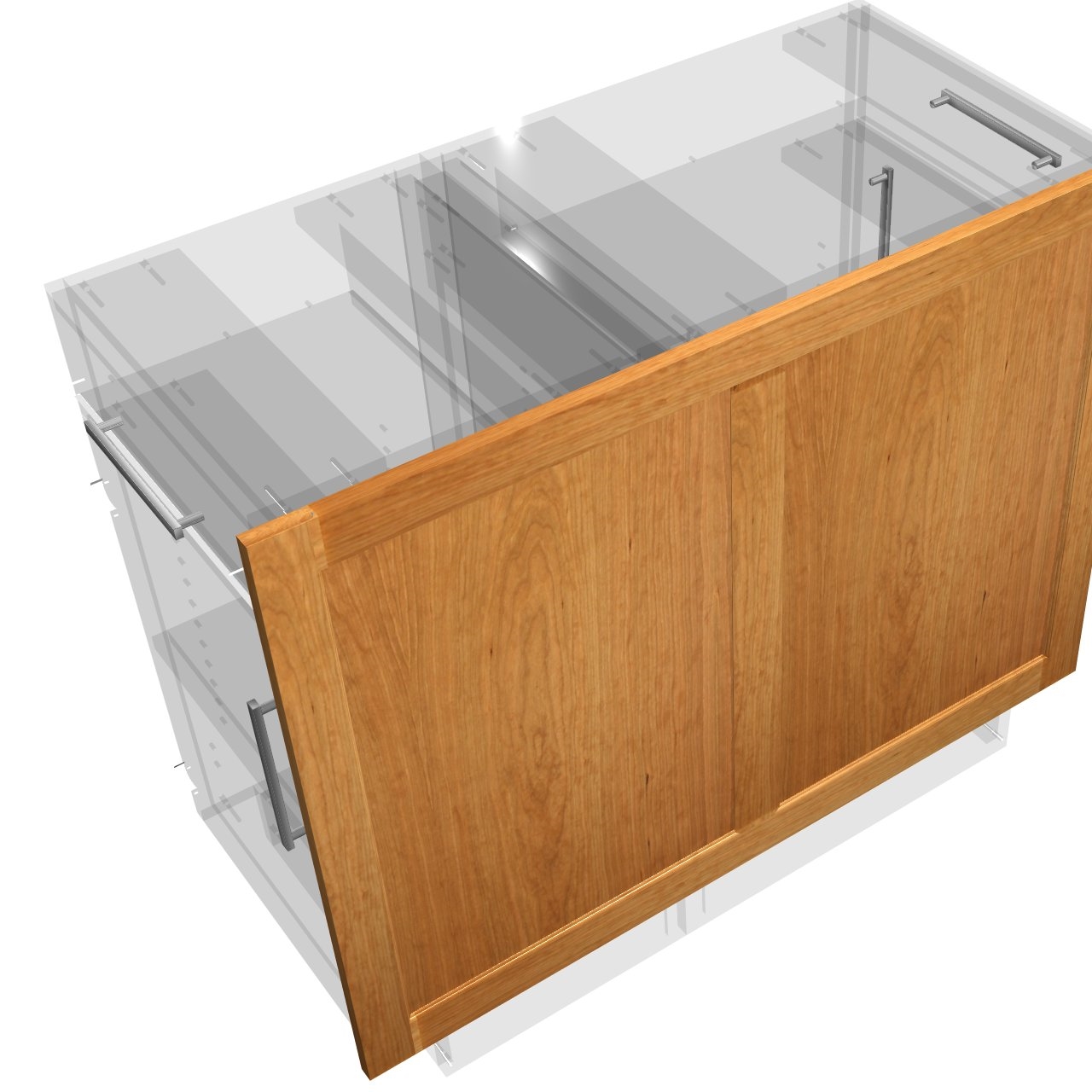

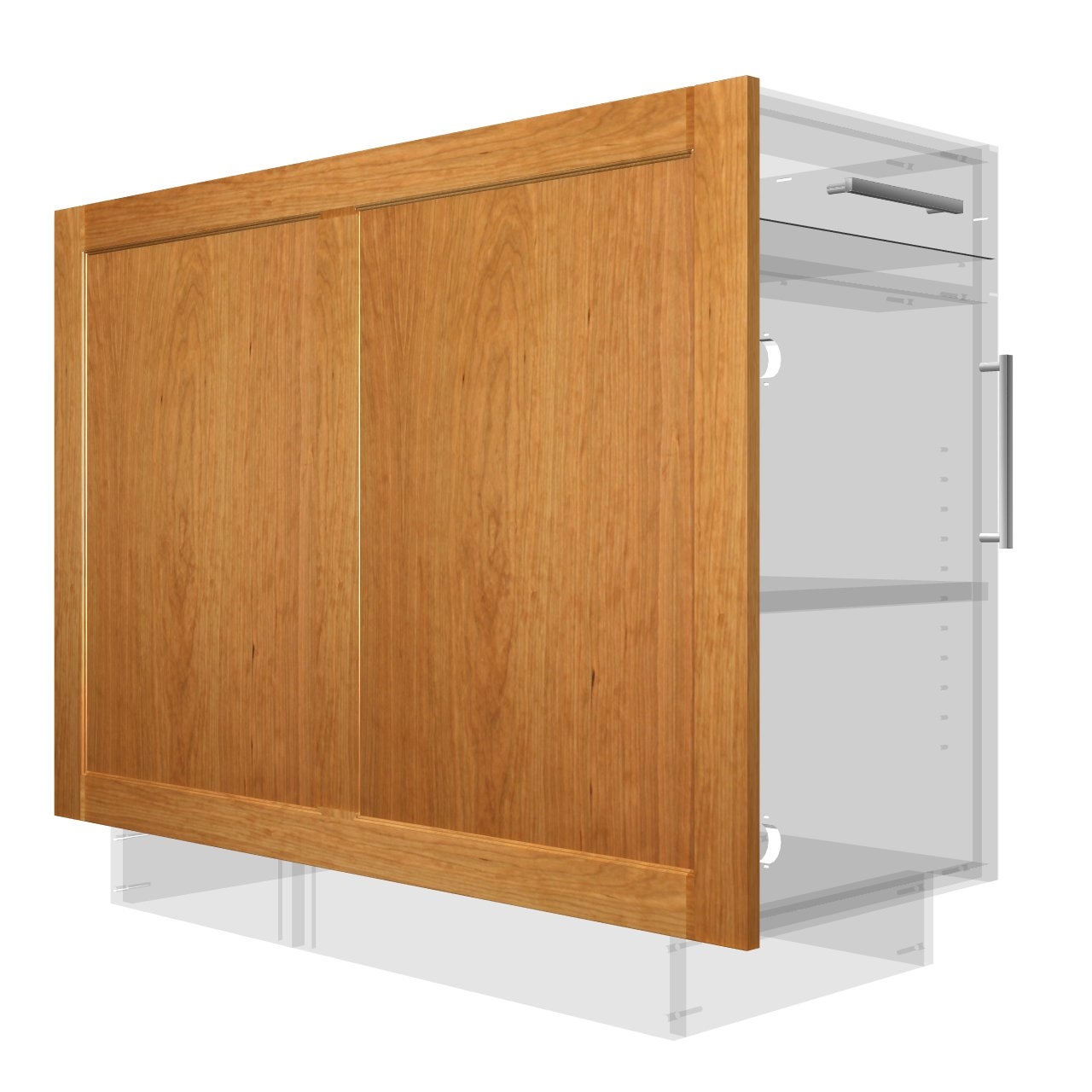

This is an applied door end panel with a matching outside edge detail that corresponds to the selected door style at the time of ordering. Order this base finished end panel 4" shorter than the cabinet it will be applied to. This allows you to install it 4" above the floor, enabling the toe kick to continue underneath all the way to the back wall.
Apply this panel to the end of the cabinet run to provide a finished look.
Disclaimer: This applied door end panel includes a vertical stile that divides the door into two panels (left and right). This design keeps the panel rigid and helps prevent warping or bowing. Because it is attached to the side of a cabinet, this panel does not carry a warranty against warping or bowing?the cabinet case it?s mounted to will provide structural support and keep it straight.
Features
QUICK FACTS
  • This cabinet is shipped "ready to assemble". See "Assembly Instructions" category for more info on how to assemble your cabinets.
  • Construction holes will be visible on the sides of the cabinet once assembled. Finished end panels (ordered separately) should be ordered to finish off the exposed cabinet sides after installation.
  • The interior of this cabinet will be real maple wood veneer over a 3/4" Purebond Plywood (no VOC), finished with a clear UV (baked-on, UV wood, No VOC). Purebond plywood is top-of-the-line and Made in the USA.
  • Doors, drawer fronts, drawer boxes, and face of the cabinet case will be raw wood unless ordered with an optional finish of your choice. See our "wood samples" category for available finishes and corresponding edge banding material specifications.
  • The toe kick of the cabinet will show exposed plywood core. Real wood toe skins (ordered separately) should be used to cover the face of the toe kick once all cabinets are installed. See the "Millwork" category.





General Cabinet Specifications
  • Construction- Full overlay, European style, frameless cabinet case construction
  • Cabinet Case Interior
    • Standard Cabinets- 3/4" thick Purebond plywood with a natural finished maple veneer (UV wood, baked on acrylate finish, scratch and dent resistant). Columbia Purebond plywood is formaldehyde free premium grade plywood (made in USA with North American lumber).
    • Glass door and exposed interior cabinets- Unfinished/raw purebond plywood with wood veneer that matches the wood species and finish selected for the face of the cabinet case/doors.
  • Drawer Boxes (if applicable)- 5/8" thick dovetailed drawer boxes (1/4" thick fully captured bottoms, 100 lbs capacity), fully assembled, then sanded, then sprayed with a natural CLEARCOAT conversion varnish to ensure smooth dovetailed joints (furniture grade).
  • Drawer Slides (if applicable)- Blum Blumotion integrated soft closing/self closing under mounted drawer slides (heavy duty version, made in USA, 100 lbs capacity)
  • Hinges (if applicable)-Blum Clip Top integrated soft closing/self closing hinges (heavy duty version, made in USA, fully adjustable)
  • Finishing- Doors, drawer fronts, and face of cabinet are available in raw wood (apply finish on site), or with one of our available conversion varnish based finishes already applied.
